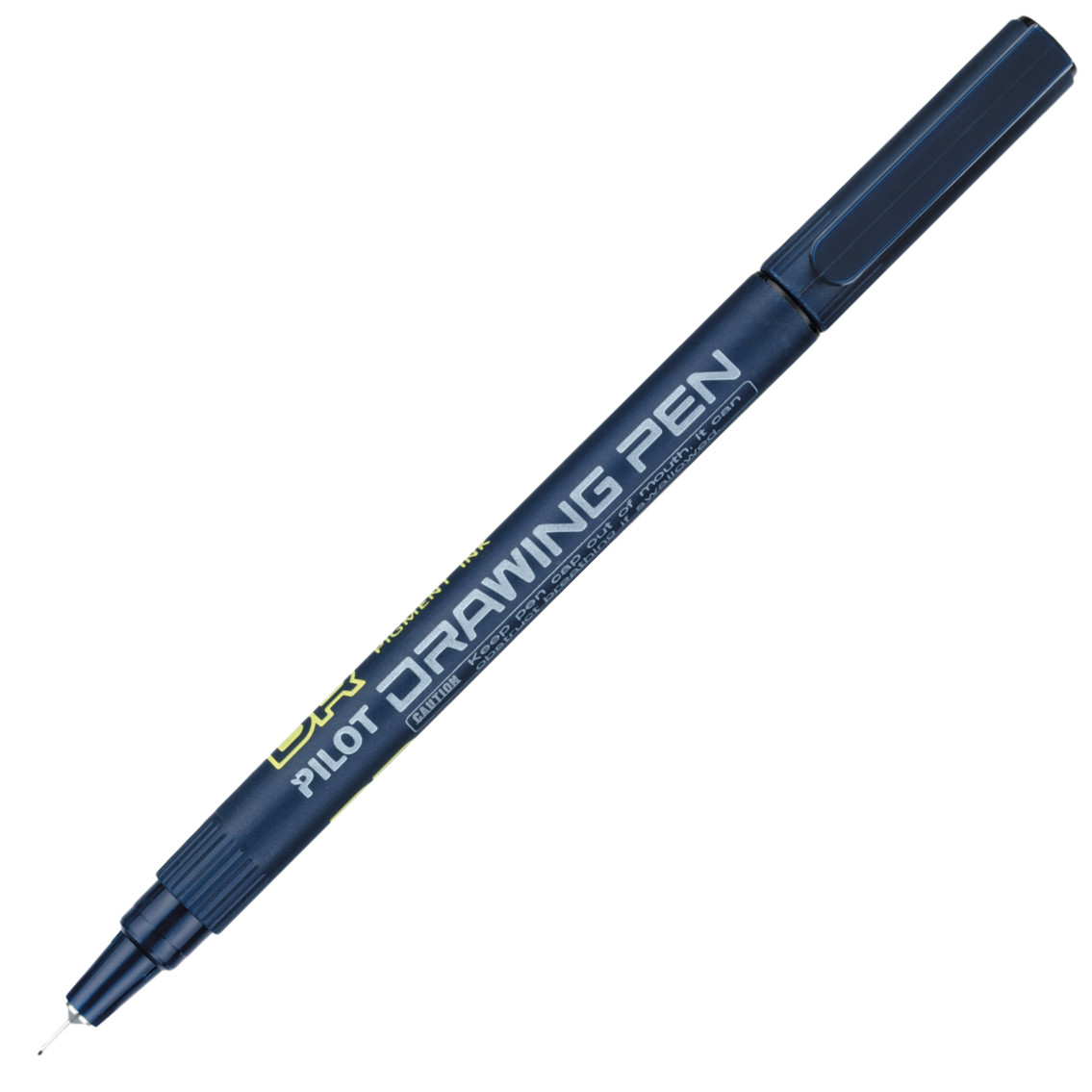

Use the Pilot DR Drawing Pen for outlines, hatching and technical drawing. Each black pigment fineliner carries a grade code. Match the grade to the point diameter and the width of line you want on the page.

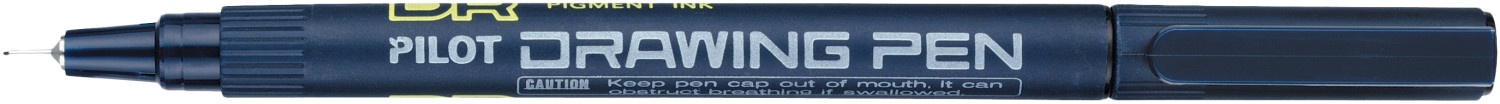

- Grade 01 has a 0.5 mm point and writes a 0.28 mm line

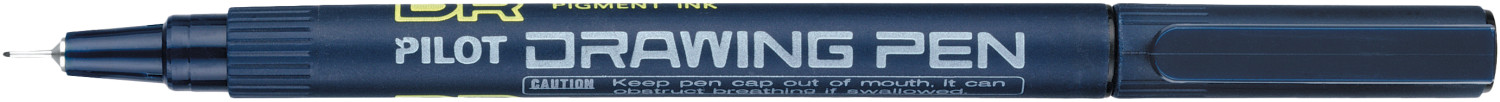

- Grade 02 has a 0.6 mm point and writes a 0.35 mm line
- Grade 03 has a 0.8 mm point and writes a 0.40 mm line
- Grade 05 has a 1.0 mm point and writes a 0.5 mm line

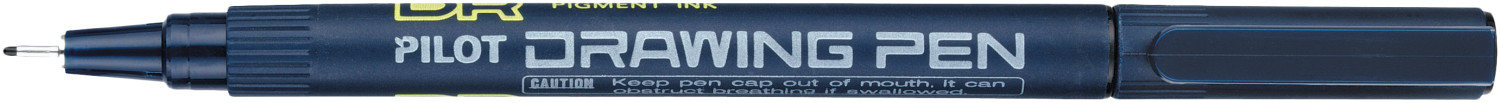

- Grade 08 has a 1.2 mm point and writes a 0.8 mm line
- Capped pen with a fibre tip
